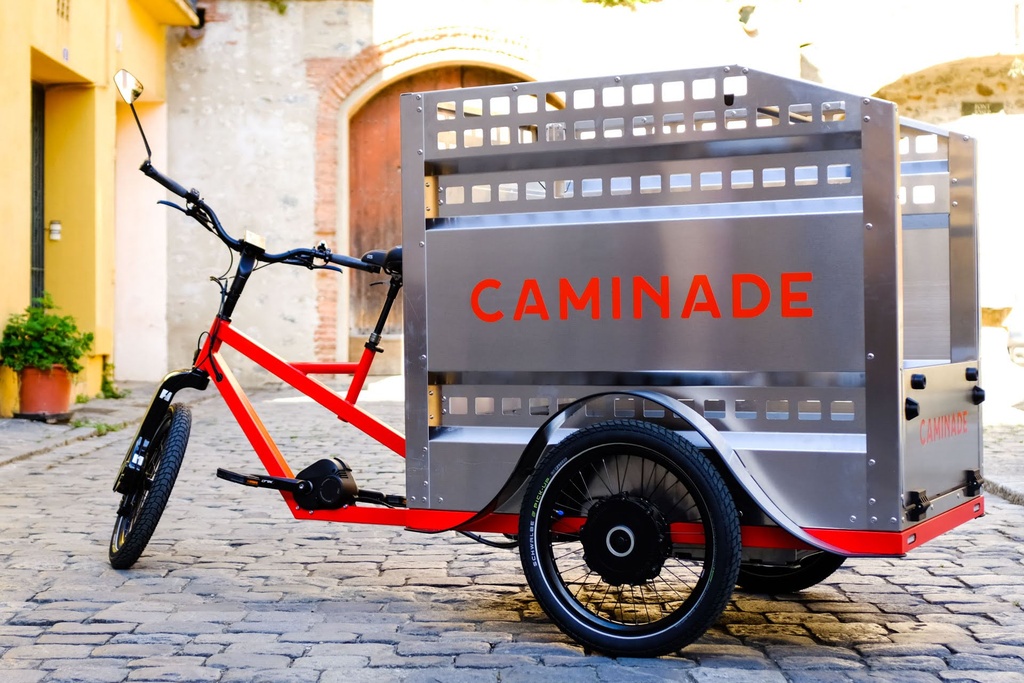

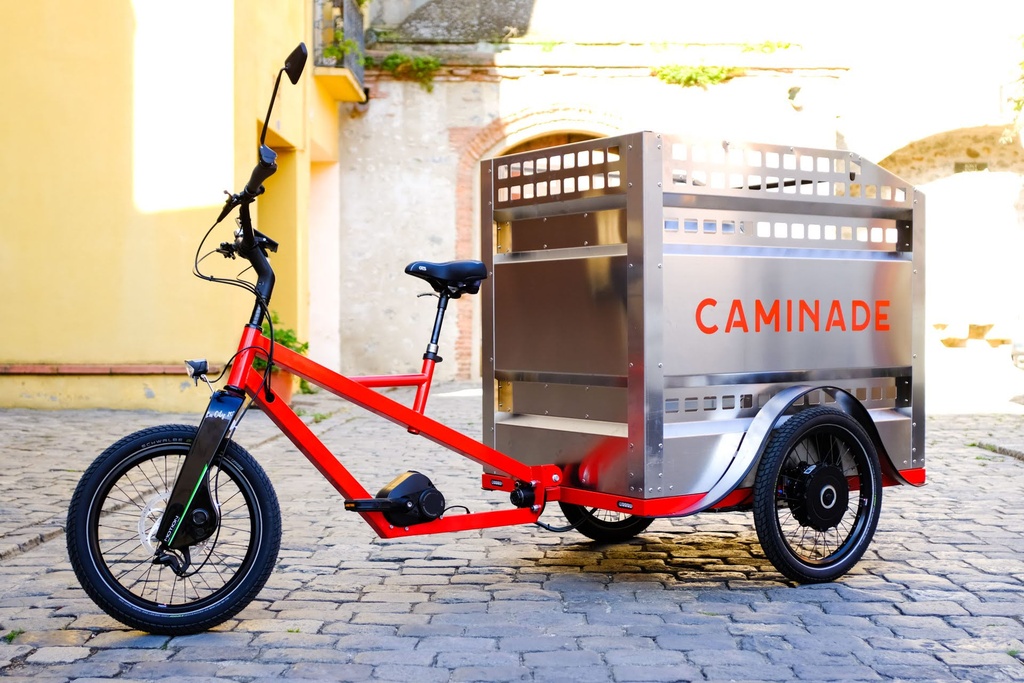

Chainless cargo tricycle for cycle logistics

Expected delivery from September

13,200.00 € 13200.0 EUR 13,200.00 € VAT Included

11,000.00 € VAT Included

Not Available For Sale

This combination does not exist.

Contact Us
Sold By

Terms and Conditions
 Delivery possible in the European Union, Switzerland, UK and Norway. Delivery fees not included in price.
Total order cost calculated before payment with your shipping address.

Pendular tricycles with progressive suspension

Light utility vehicle approved as an e-bike (25 km/h)

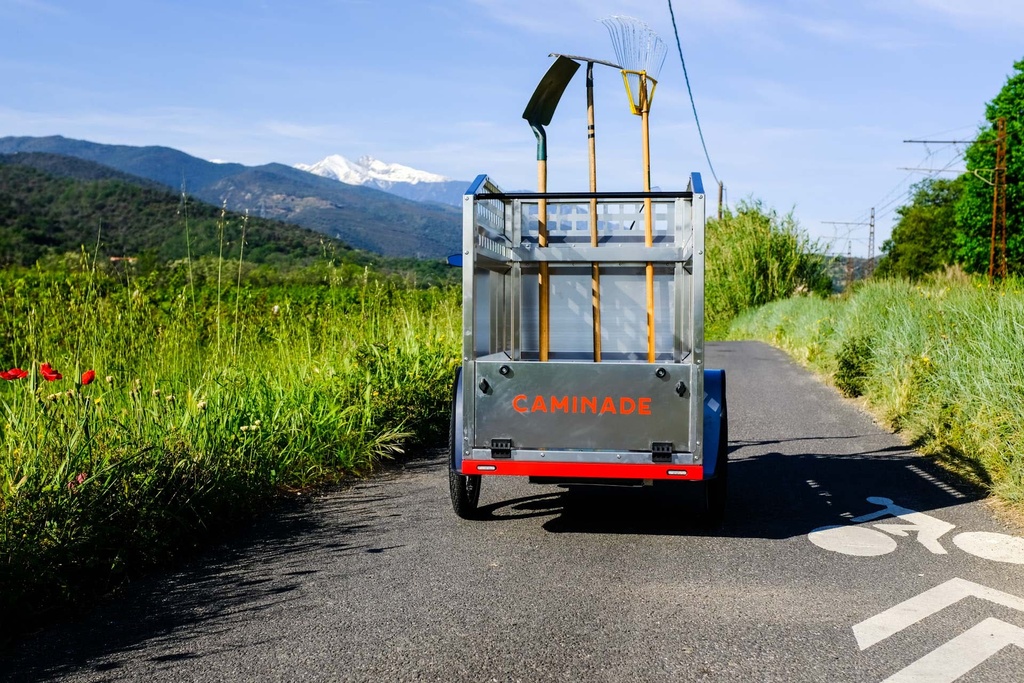

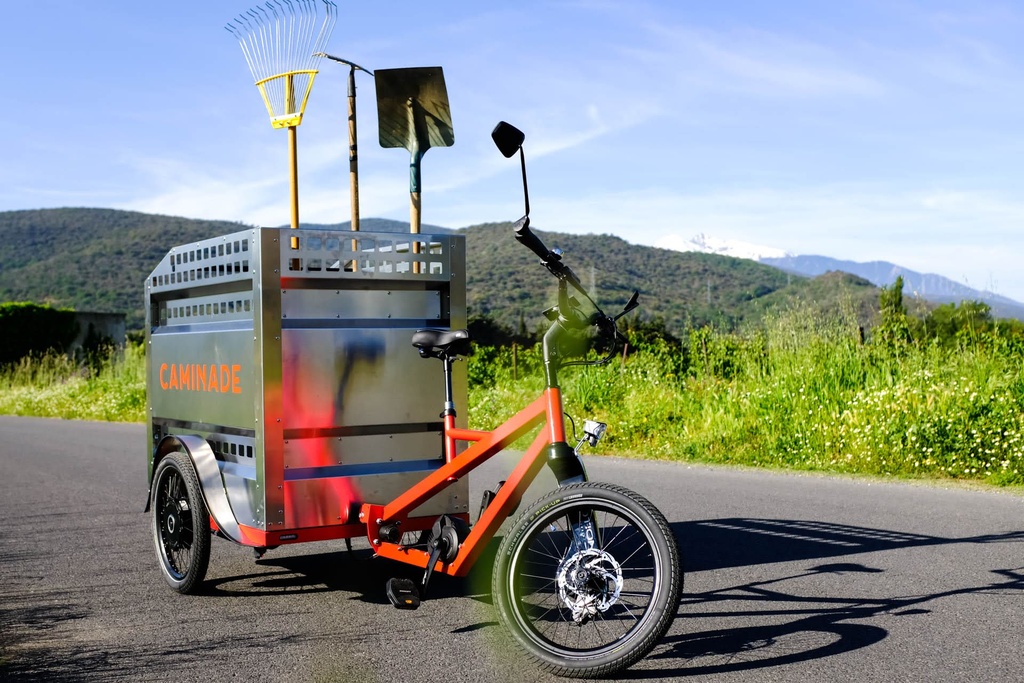

Delivered with a 1 m³ box specially designed for road maintenance (green spaces and waste collection), equipped with a tool holder and rear drop-down side panel.

​



Weight

Gross Vehicle Weight Rating (GVWR)384 kg
Payload (with 75 kg driver and road maintenance box included)204 kg
Unladen weight (with road maintenance box included)105 kg

Maximum slope for hill start20 %
Maximum slope at 25 km/h when loaded7%


Frame

Custom Bicycle Manufacturing


We use 2-meter grade 9 titanium tubes that Erwan shapes before machining and cutting them to assemble by TIG welding or by sleeve bonding with structural adhesive. The latter method, which is faster, reduces the cost of Made in France custom bike frames but limits design options.


Our manufacturing lead time varies between 6 and 12 weeks depending on the time of year.





Pedaling System

An electronic chainless pedaling system

No mechanical chain or derailleur, no manual gear shifting… the electronic chainless pedaling system makes vehicles simple to use and more intuitive:

No more need to shift gears; the electronic chainless pedaling system continuously manages the necessary torque adjustment for a better riding experience – this is particularly enjoyable in urban traffic. By choosing their desired level of effort, the rider can adapt their physical activity to different times of the day.

  • No more gear shifting
  • Connected pedaling system
  • Regenerative braking
  • Anti-theft system
  • Maintenance-free
  • Reverse pedaling (3+ wheels)
  • Clean
  • Natural haptics



Regenerative braking range extension
11 % min.


Electric assistance

Max power
2700 W
Max torque
220 Nm
48V - LiFePO4 battery1440 Wh


Wheels

Two hub motors
  • Reduced wheelbase
  • Tight turning radius
  • Stable & easy to handle at 25 km/h




Custom options available for specific cargo needs

  • Large refrigerated box CarryTemp XL9 (Cold&Co), 880 litres ( 33 kg )
  • Smart City Box (Bag Pro),1500 litres secured with side & rear doors ( 51 kg ) total width : 1m
  • Long City Box (Bag Pro), 1100 litres secured with assisted lift-up roof ( 27 kg ) total width : 85cm

Our configurators, Your build


Customize your bike’s setup with our interactive configurators: adjust components like the drivetrain, wheels, fork, and more — the total price updates in real time based on your selections.
